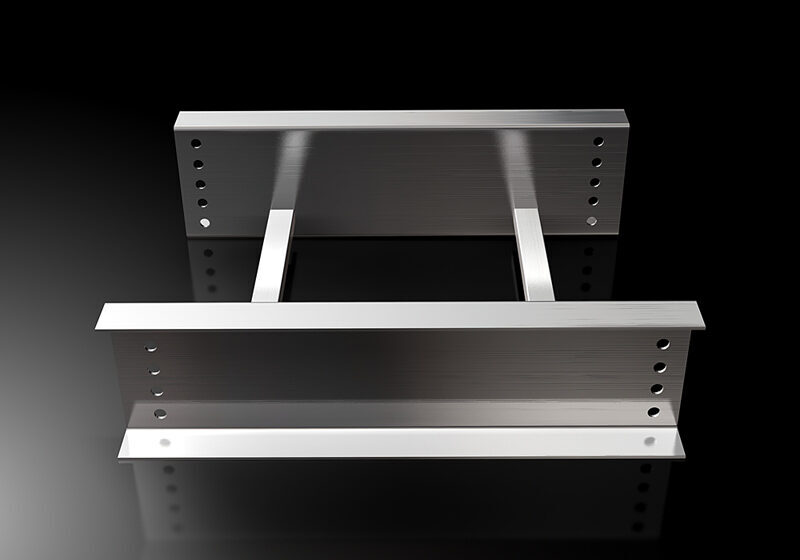

Ladder Cable Tray
Ladder cable trays consist of two longitudinal side members connected by individual transverse members and provide solid side rail protection and system strength with smooth radius fittings and a wide selection of materials and finishes. Materials available: Aluminum, Steel, Steel HDGAF, Stainless Steel, PVC-coated Aluminum or Steel Cable Trays. Cable Tray Rung Spacing is available in: 6", 9" , 12" and 18" and Load Depths are available in 3" through 7". MPHusky Ladder Cable Tray is certified CSA , UL , NEMA , and approved for use in nuclear applications and is generally used in applications with intermediate to long support spans of 12 feet to 30 feet and as power cable or control cable support system.
Channel Cable Tray
Channel Cable Trays consist of a one-piece, ventilated or solid bottom channel section, providing an economical support for cable drops and branch cable runs from the backbone cable tray system. Generally used for installations with a limited numbers of cables when conduit is undesirable and single power cable or multiple control or signal circuit cables are being supported. Support frequency with short to medium support spans of 5 to 10 feet. MP Husky channel cable tray is either ventilated or solid bottom and furnished in 1-3/4" deep and 4" or 6" widths. Its Compact size makes it easier to position around and connect to equipment. Channel Cable Tray is available in the following material types: aluminum, mill-galvanized steel, steel HDGAF, stainless steel and PVC-coated aluminum or steel.
Trough Cable Trays
Consists of a ventilated or solid bottom contained within longitudinal side members. Provides moderate ventilation with added cable support frequency and with the bottom configuration providing cable support every 4 inches. Available in metal and nonmetallic materials. Generally used with control and instrumentation cables in moderate heat generating applications with short to intermediate support spans of 5 feet to 12 feet. Trough cable tray bottom is available in flat sheet or corrugation that is 3 times stronger and 21 times stiffer than flat sheet bottoms. Corrugated seams between jointing sections eliminate need for bottom seam splices. Load Depths: 3" through 5-1/2" Materials available: Aluminum, Mill-galvanized Steel, Steel HDGAF, Stainless Steel, PVC-coated Aluminum or Steel and meets Meets NEMA 8A to 20C+'.
Single Rail Cable Tray
Single Rail Center Supported Cable TraysAluminum cable trays save time and money in lighter-duty cable support projects that do not require a traditional dual side rail. The fastest cable support systems to install and provide the maximum freedom fort cable to enter and exit the system. Single Rail Cable Trays are generally used for low voltage and power cables installations where maximum cable freedom, side fill, and speed to install are factors. Husky Centray® rungs come already attached transversely through either the top or bottom of the center tubular rail. The Centray EZ-Clip or a two bolt splice connector joins sections together quickly and easily. Husky Centray cable tray system saves time and money because No elbow fittings are required resulting in 50% less installation labor, 75% less components and hardware than standard trays. MP Husky single rail cable tray to and and bottom rung design Meets NEMA 12B and 12C.
Cable Way Cable Tray
Cable Way is an economical and easy cable support system. When covers are utilized it becomes a fully enclosed cable support system. The smooth solid bottom and cover hide cables from view when aesthetics are important. Quick shipment is available.
Fiberglass Cable Tray
Fiberglass Fiber Reinforced Plastic (FRP)cable trays provide reliable cable support in corrosive applications. Both polyester and vinyl ester resin are available and all components incorporate U.V. inhibitors and a surfacing veil to resist corrosive elements and meet ASTM E-84 smoke density rating; Polyester 680, Vinyl Ester 1025 Class 1 Flame Rating and self-extinguishing requirements of ASTM D-635. MP Husky Fiberglass Cable Tray systems have been tested and proven in the harsh environment of the offshore Oil & Gas industry. Our Fiberglass Cable Tray gives you the load capacity of steel, plus the inherent characteristics afforded by Pultrusion Technology: non-conductive, non-magnetic, and corrosion-resistant. These characteristics reduce shock hazard and make our FRP cable tray transparent to radio waves, radar and microwaves.
Wire Mesh Wire Basket Cable Tray
Wire Mesh Cable Tray and Wire Basket cable trays offer double the cable support area to better support data communication and fiber optic cabling in addition to saving time and money in those lighter-duty cable support projects. Job site, field adaptable support system primarily for low voltage, telecommunication and fiber optic cables. Wire Mesh cable trays are available in galvanized, zinc plated, painted, pvc coated and stainless steel, wire mesh. Wire Mesh tray cable trays are generally used for telecommunication and fiber optic applications and are installed on short support spans, 4 to 8 feet. MPHusky's unique design of Techtray, with its 2" x 2" grid system and the "T-Weld" safety edge, make it the clear choice for the most complete support of sensitive fiber optic and communication cables. The Smart Tab System is the fastest and simplest way to support, splice and connect Wire Mesh Cable Tray. No more fumbling with hardware and multiple tools to install splice connections or supports. All you need is an open-end wrench or a straight blade screwdriver. Installation has never been this quick and easy!
